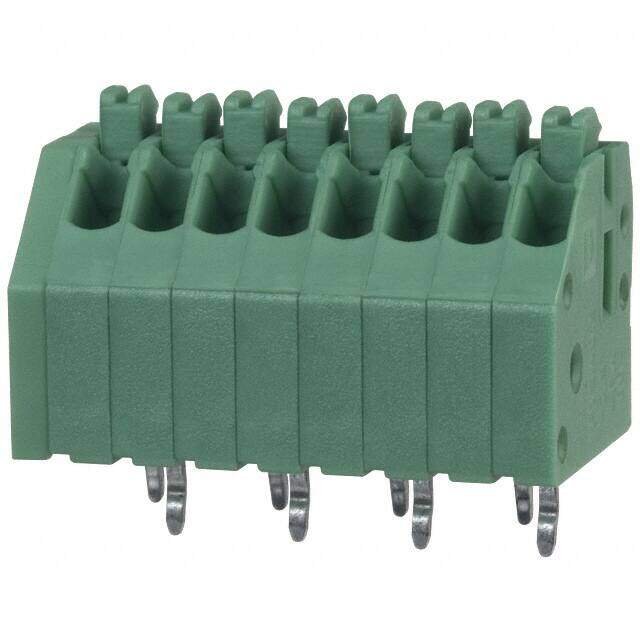

1990067 image
Favorite
1990067 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description CONN TERM BLOCK SPRNG 8POS 2.5MM
PDF
/
Buying Options
Total Price: USD $1.11
Unit Price: USD $1.1088
≥1 USD $1.1088
≥10 USD $1.06304
≥100 USD $1.033824
≥500 USD $0.96624
≥1000 USD $0.888941
≥3000 USD $0.872291
Inventory: 1522
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Width 21.5mm
Length 12mm
Height 16.7mm

Technical

Fastening Method SPRING LOADED
Wire Cross Section 0.5 mm2
Wire Termination Screwless - Spring Cage, Tension Clamp
Mating Orientation 45° (135°) Angle with Board
Safety Approval UL
Number of Ways 8
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire/Cable Gauge 20 AWG
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 26 AWG
Number of Levels 1
Max Current Rating 2A
Voltage 300V
Wire Gauge 20-26 AWG
Number of Contacts 8
Approval Agency UL, VDE
Current Rating 2A
Reach Compliance Code unknown
Pitch 0.098 2.50mm
Additional Feature PA, UL 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PTSA
Published 2005
Packaging Bulk

Physical

Weight 2.810005g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper

Supply Chain

Factory Lead Time 4 Weeks
