1987724
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

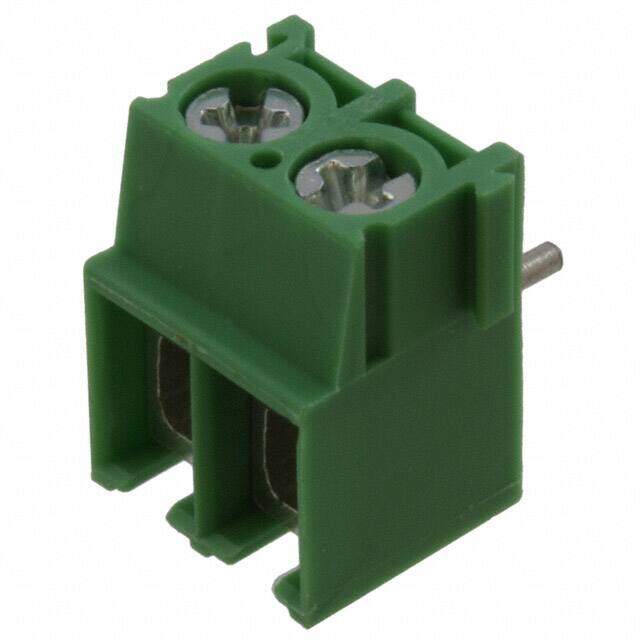

Conn; Term Blk; PCB; Screw; 2; 5 mm; Top; 20-10 AWG; Green; 32 A; 250 V
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
≥10 USD $0.47344
≥100 USD $0.453024
≥500 USD $0.440704
≥1000 USD $0.41184
≥3000 USD $0.378893
Inventory: 857
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 13.5mm
Length 13.5mm
Height 9mm
Technical
Screw Thread M3
Wire Termination Screw
Mating Orientation Vertical with Board
Safety Approval UL
Number of Ways 2
Torque - Screw 0.45-0.5 Nm (3.9-4.4 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire/Cable Gauge 10 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 20 AWG
Current 20A
Number of Levels 1
Voltage 300V
Wire Gauge 12-20 AWG
Approval Agency CB, UL, VDE
Current Rating 32A
Reach Compliance Code unknown
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Number of Positions 2
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PT
Published 2005
Packaging Bulk
Physical
Weight 311.844754g
Housing Material Polyamide (PA), Nylon
Material Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Tin
Supply Chain
Factory Lead Time 4 Weeks
