1985357 image
Favorite
1985357 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board

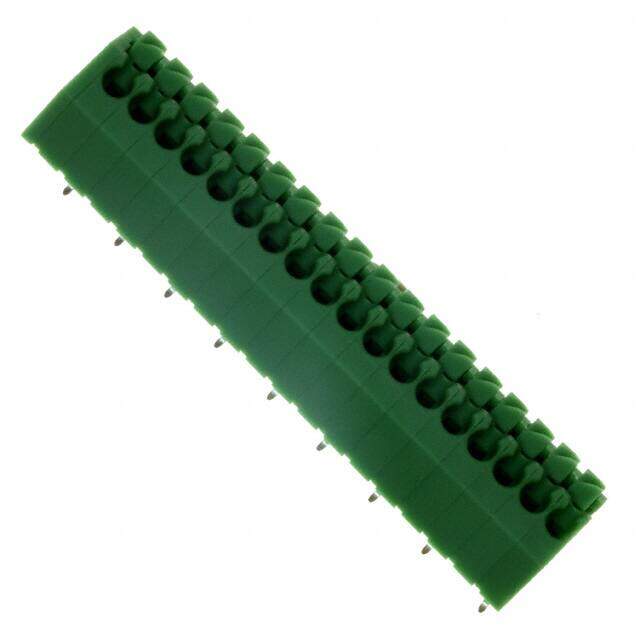

Description TERM BLOCK 18POS 45DEG 3.5MM PCB
PDF
/
Buying Options
Total Price: USD $2.41
Unit Price: USD $2.4112
≥1 USD $2.4112
≥10 USD $2.34784
≥100 USD $2.19384
≥500 USD $2.018368
≥1000 USD $1.980563
Inventory: 62
Minimum: 1
-
+

Technical Details

Technical

Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Pbfree Code yes
Series COMBICON PTSA
Published 2003
Packaging Bulk
Fastening Method SPRING LOADED
Wire Termination Screwless - Spring Cage, Tension Clamp
Mating Orientation 45° (135°) Angle with Board
Safety Approval UL
Number of Ways 18
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Number of Levels 1
Voltage 300V
Wire Gauge 16-24 AWG
Current Rating 2A
Reach Compliance Code unknown
Depth 13.1mm
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 250V
Gender Female
Number of Rows 1
Color Green
Number of Positions 18

Physical

Weight 8.660014g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 13 Weeks

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant

Dimensions

Width 12mm
Length 12mm
Height 13.1mm
