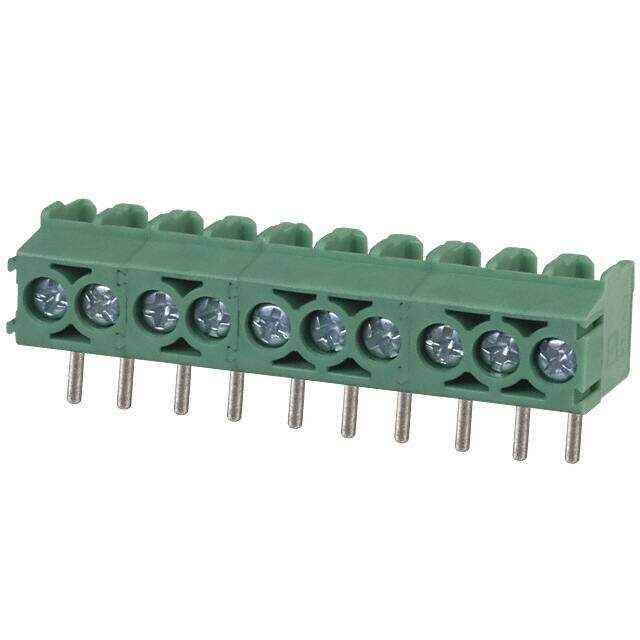

1984840 image
Favorite
1984840 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description Terminal Block; Printed Circuit; 10 A; 160 V; 3.5 mm; 10; 3.5 mm; 1.2 mm; M2
PDF
/
Buying Options
Total Price: USD $2.51
Unit Price: USD $2.508
≥1 USD $2.508
≥10 USD $2.39624
≥100 USD $2.330416
≥500 USD $2.178
≥1000 USD $2.00376
≥3000 USD $1.966254
Inventory: 340
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Length 9mm
Height 7.6mm

Technical

Stripping Length 5mm
Screw Thread M2
Wire Termination Screw
Mating Orientation Vertical with Board
Safety Approval UL
Number of Ways 10
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire/Cable Gauge 16 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Max Current Rating 17.5A
Voltage 300V
Wire Gauge 16-26 AWG
Number of Contacts 10
Approval Agency UL
Current Rating 17.5A
Reach Compliance Code unknown
Orientation Right Angle
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Green
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series COMBICON PT
Published 2005
Packaging Bulk

Physical

Weight 4.66001g
Housing Material Polyamide (PA), Nylon
Insulation Material Nylon
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 10 Weeks
