1935802
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

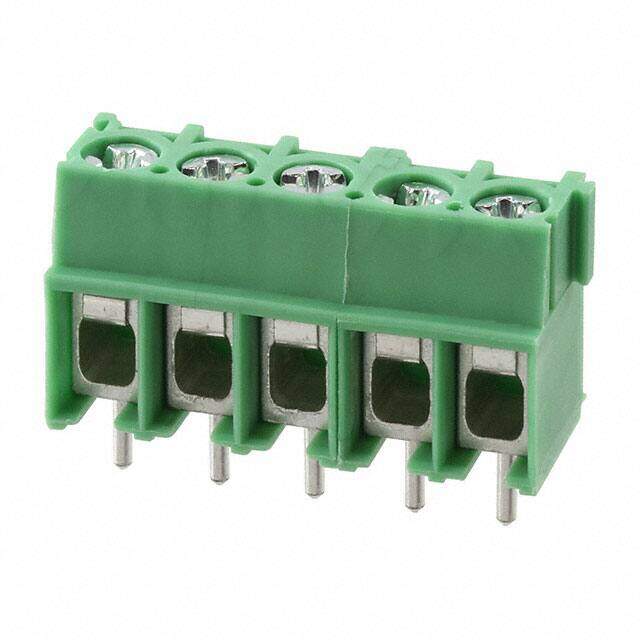

Terminal Block Connector; PCB; Screw; 5 mm; Front; 20-10 AWG; Green; 32A; 250 V
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9944
≥1 USD $0.9944
Inventory: 189
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 6.160011g
Technical
Packaging Bulk
Published 2008
Series COMBICON PT
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, UL 94V0
Pitch 0.197 5.00mm
Orientation Straight
Depth 9mm
Reach Compliance Code not_compliant
Current Rating 32A
Approval Agency CB, UL, VDE
Number of Contacts 5
Wire Gauge 12-20 AWG
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 32A
Number of Levels 1
Current 20A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 10 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.45-0.5 Nm (3.9-4.4 Lb-In)
Number of Ways 5
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw
Screw Thread M3
Wire Cross Section 4 mm2
Dimensions
Height 13.5mm
Length 9mm
Width 25mm
Compliance
RoHS Status RoHS Compliant
