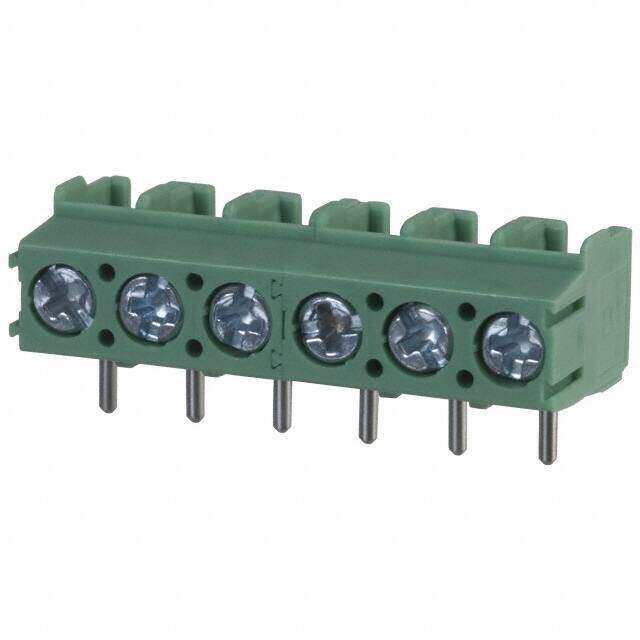

1935352 image
Favorite
1935352 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description TERM BLK 6POS TOP ENTRY 5MM PCB
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.3816
≥1 USD $1.3816
≥10 USD $1.3244
≥100 USD $1.288144
≥500 USD $1.20384
≥1000 USD $1.107533
≥3000 USD $1.0868
Inventory: 190
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Width 9mm
Length 30mm
Height 9mm

Technical

Stripping Length 5mm
Screw Thread M2.6
Wire Termination Screw
Mating Orientation Vertical with Board
Safety Approval UL
Number of Ways 6
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Number of Poles 6
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 18A
Number of Levels 1
Max Current Rating 16A
Max Supply Voltage 250V
Voltage 300V
Wire Gauge 12-26 AWG
Approval Agency CB, UL, VDE
Current Rating 17.5A
Reach Compliance Code unknown
Depth 11.4mm
Orientation Right Angle
Pitch 0.197 5.00mm
Voltage - Rated DC 320V
Additional Feature PA, 94V-0
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Green
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series COMBICON PT
Published 2005
Packaging Bulk

Physical

Weight 5.800001g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Insulation Material Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper

Supply Chain

Factory Lead Time 4 Weeks
