1935323
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

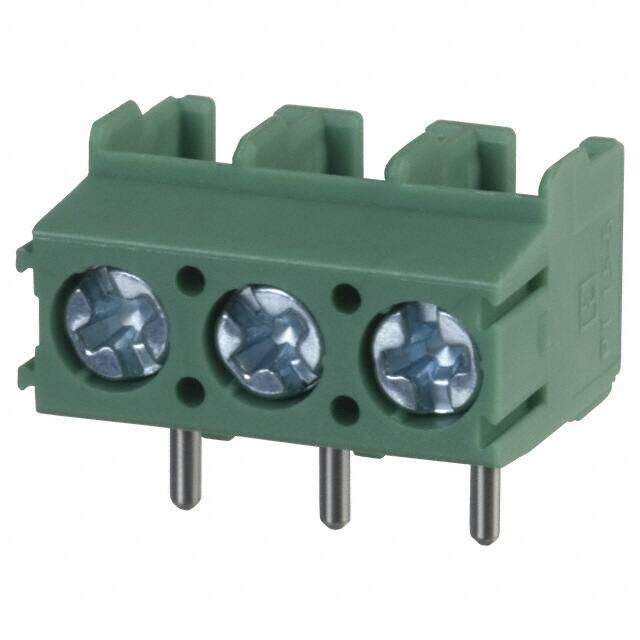

PHOENIX CONTACT PT1,5/3-5.0-V Wire-To-Board Terminal Block, 3 Ways, 400 V, 17.5 A, 26 AWG, 16 AWG, 1.5 mm
PDF
/
Buying Options
Total Price: USD $0.56
Unit Price: USD $0.5632
≥1 USD $0.5632
Inventory: 124
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 2.869992g
Technical
Packaging Bulk
Published 2011
Series COMBICON PT
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, 94V-0
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 11.4mm
Reach Compliance Code not_compliant
Current Rating 17.5A
Approval Agency CB, UL, VDE
Number of Contacts 3
Wire Gauge 12-26 AWG
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 17.5A
Number of Levels 1
Current 18A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 14 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Number of Ways 3
Safety Approval UL
Mating Orientation Vertical with Board
Wire Termination Screw
Screw Thread M2.6
Stripping Length 5mm
Dimensions
Height 9mm
Length 11.3mm
Width 15mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
