1935271
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

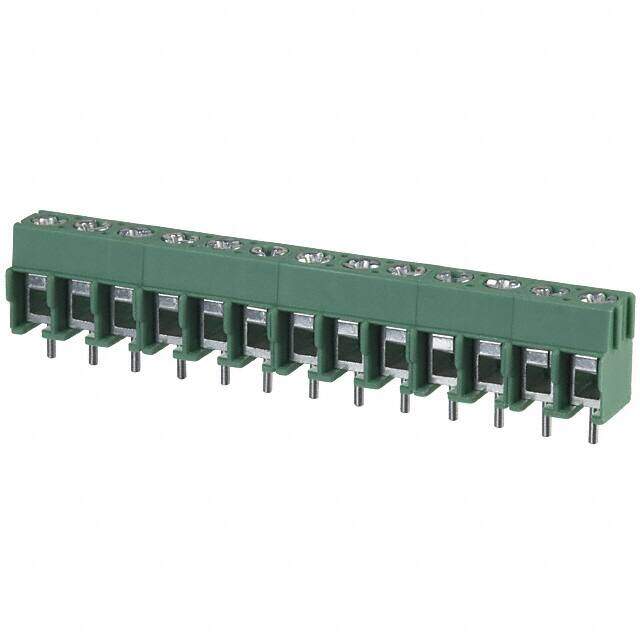

TERM BLOCK PCB 13POS 5.0MM GREEN
PDF
/
Buying Options
Total Price: USD $2.14
Unit Price: USD $2.1384
≥1 USD $2.1384
Inventory: 86
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 12.469991g
Technical
Packaging Bulk
Published 2011
Series COMBICON PT
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Orientation Straight
Current Rating 17.5A
Number of Contacts 13
Wire Gauge 12-26 AWG
Voltage 300V
Max Current Rating 17.5A
Number of Levels 1
Current 18A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 14 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Number of Ways 13
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw
Screw Thread M2.6
Dimensions
Height 11.3mm
Length 9mm
Width 9mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
