1935161
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

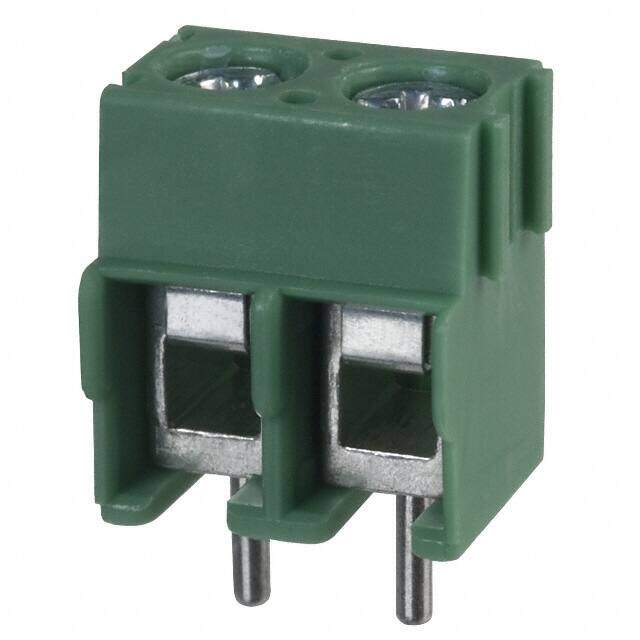

TERM BLK 2POS SIDE ENTRY 5MM PCB
PDF
/
Buying Options
Total Price: USD $0.44
Unit Price: USD $0.44
≥1 USD $0.44
≥10 USD $0.41888
≥100 USD $0.400752
≥500 USD $0.38984
≥1000 USD $0.36432
≥3000 USD $0.335174
Inventory: 72355
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 1.900013g
Technical
Packaging Bulk
Published 2003
Series COMBICON PT
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Color Green
Number of Rows 1
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Voltage - Rated DC 320V
Pitch 0.197 5.00mm
Orientation Straight
Depth 9mm
Current Rating 17.5A
Voltage - Rated AC 250V
Approval Agency UL
Number of Contacts 2
Wire Gauge 12-26 AWG
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 16A
Number of Levels 1
Current 18A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 14 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Number of Ways 2
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw
Screw Thread M2.6
Dimensions
Height 11.3mm
Length 9mm
Width 14.9mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
