1933341
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

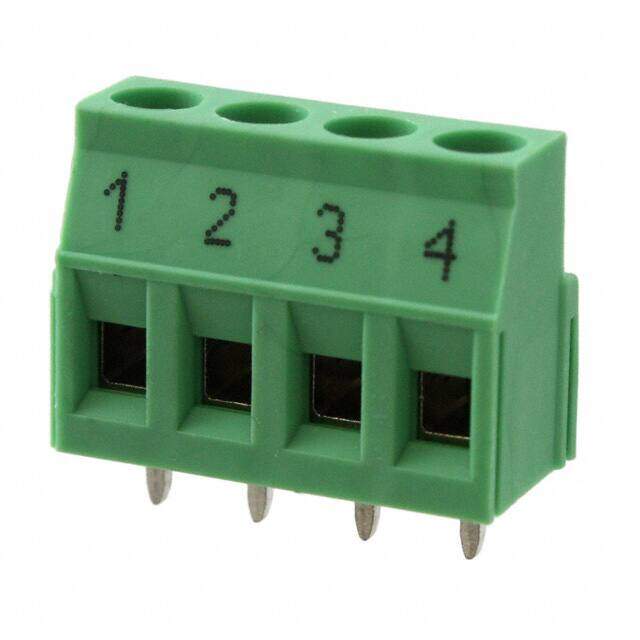

TERM BLK 4POS SIDE ENTRY 5MM PCB
PDF
/
Buying Options
Total Price: USD $1.69
Unit Price: USD $1.6896
≥1 USD $1.6896
Inventory: 89
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Screw, Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 6.230006g
Technical
Packaging Bulk
Published 2010
Series COMBICON MKDSN
Feature Interlocking (Side), Positions Stamped
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Number of Positions 4
Color Green
Voltage - Rated 400V
Pitch 0.197 5.00mm
Reach Compliance Code unknown
Current Rating 16A
Wire Gauge 12-30 AWG
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Safety Approval UL; VDE
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Dimensions
Length 15mm
Width 9.5mm
Compliance
RoHS Status RoHS Compliant
