RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board

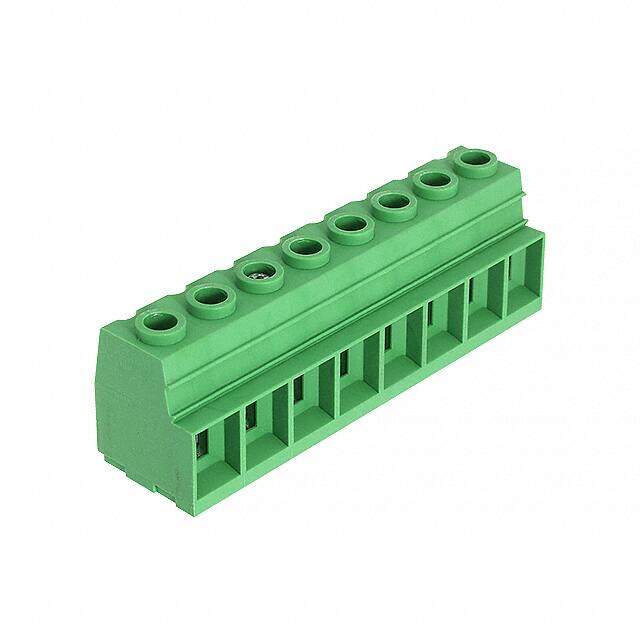

Description Fixed Terminal Blocks MKDSP 25/8-15.00 8 POS 15.00mm
PDF
/
Buying Options
Total Price: USD $106.56
Unit Price: USD $106.558903
≥1 USD $106.558903
≥200 USD $42.518267
≥500 USD $41.097709
≥1000 USD $40.395307
Inventory: 3794
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Width 31mm
Length 31mm
Height 39mm

Technical

Wire Cross Section 35 mm2
Stripping Length 18mm
Screw Thread M5
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Safety Approval UL
Number of Ways 8
Torque - Screw 2.5-4.5 Nm (22.1-39.8 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Number of Poles 8
Wire Gauge (Min) 2 AWG
Wire Gauge (Max) 20 AWG
Current 115A
Number of Levels 1
Voltage 600V
Wire Gauge 2-20 AWG
Approval Agency CB, UL, VDE, cULus
Current Rating 125A
Depth 39mm
Orientation Straight
Pitch 0.591 15.00mm
Additional Feature PA, UL 94V0
Voltage - Rated 1kV
Gender Male
Number of Rows 1
Color Green
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MKDSP
Published 2008
Packaging Bulk

Physical

Weight 172.539989g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 9 Weeks
