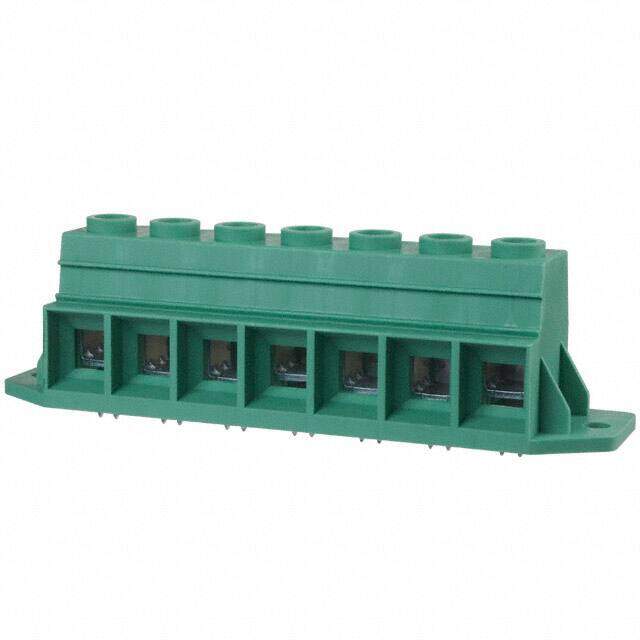

1932546
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 7P SIDE ENTRY 15MM PCB
PDF
/
Buying Options
Total Price: USD $106.54
Unit Price: USD $106.543148
≥1 USD $106.543148
≥200 USD $42.511702
≥500 USD $41.091144
≥1000 USD $40.390056
Inventory: 1089
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 152.429999g
Technical
Packaging Bulk
Published 2005
Series COMBICON MKDSP
Feature Flange (Mounting)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.591 15.00mm
Current Rating 125A
Wire Gauge 2-20 AWG
Voltage 600V
Number of Levels 1
Current 115A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 2 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 2.5-4.5 Nm (22.1-39.8 Lb-In)
Number of Ways 7
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M5
Number of Positions Per Level 7
Wire Cross Section 35 mm2
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
