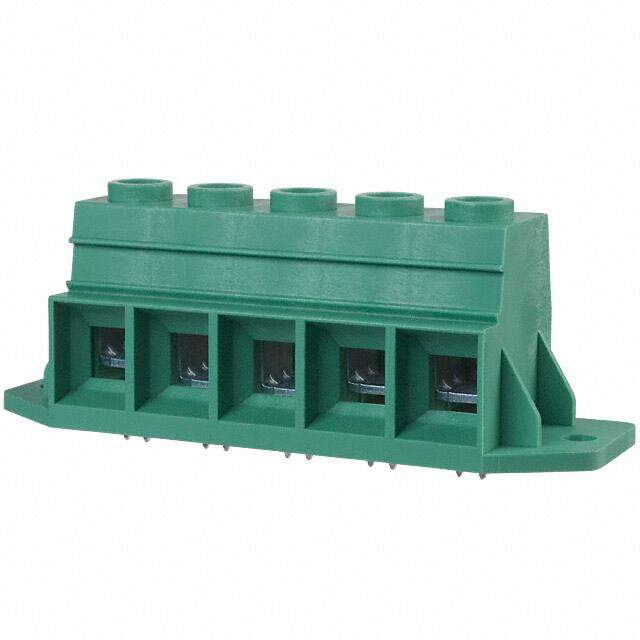

1932520
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 5P SIDE ENTRY 15MM PCB
PDF
/
Buying Options
Total Price: USD $66.58
Unit Price: USD $66.581098
≥1 USD $66.581098
≥200 USD $26.566532
≥500 USD $25.679011
≥1000 USD $25.240503
Inventory: 8567
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Width 105mm
Length 31mm
Height 43.5mm
Technical
Number of Positions Per Level 5
Screw Thread M5
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Safety Approval UL
Number of Ways 5
Torque - Screw 2.5-4.5 Nm (22.1-39.8 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 2 AWG
Wire Gauge (Max) 20 AWG
Current 115A
Number of Levels 1
Voltage 600V
Wire Gauge 2-20 AWG
Current Rating 125A
Pitch 0.591 15.00mm
Additional Feature PA, UL 94V0
Voltage - Rated 1kV
Number of Rows 1
Color Green
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Flange (Mounting)
Series COMBICON MKDSP
Published 2011
Packaging Bulk
Physical
Weight 107.219994g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper, Tin
Supply Chain
Factory Lead Time 9 Weeks
