1929533
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

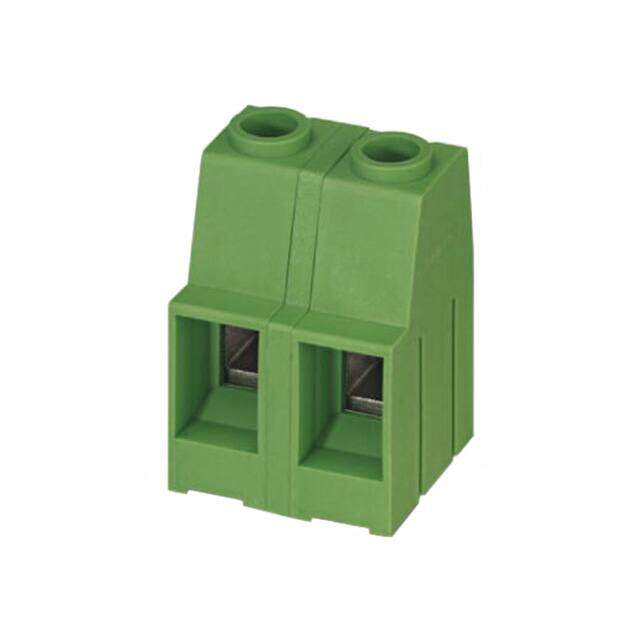

TERM BLK 2P SIDE ENT 12.7MM PCB
PDF
/
Buying Options
Total Price: USD $10.45
Unit Price: USD $10.4544
≥1 USD $10.4544
≥10 USD $10.16928
≥100 USD $9.504
≥500 USD $8.74368
≥1000 USD $8.0784
≥3000 USD $7.698275
Inventory: 1187
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Width 35.8mm
Length 22mm
Height 22.86mm
Technical
Number of Positions Per Level 2
Screw Thread M4
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Safety Approval UL
Number of Ways 2
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 20 AWG
Current 60A
Number of Levels 1
Voltage 600V
Wire Gauge 6-20 AWG
Current Rating 57A
Pitch 0.500 12.70mm
HTS Code 8536.90.40.00
Additional Feature PA, 94V-0
Voltage - Rated 690V
Number of Rows 1
Color Green
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series COMBICON MKDSP
Published 2011
Packaging Bulk
Physical
Weight 18.61699g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper, Tin
Supply Chain
Factory Lead Time 4 Weeks
