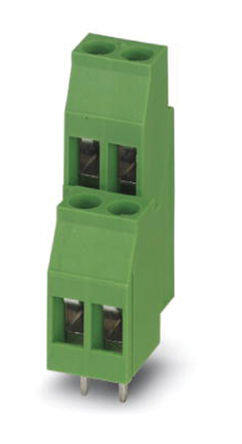

1907759
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 3P SIDE ENT 5.08MM PCB
PDF
/
Buying Options
Total Price: USD $27.68
Unit Price: USD $27.678558
≥1 USD $27.678558
≥200 USD $11.044115
≥500 USD $10.67519
≥1000 USD $10.492697
Inventory: 1893
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2015
Series COMBICON MKKDS
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Color Green
Number of Rows 2
Additional Feature STANDARD: UL 94V-0, PA
Pitch 0.200 5.08mm
Reach Compliance Code not_compliant
Wire Gauge 12-30 AWG
Voltage 300V
Number of Levels 2
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 2
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Positions Per Level 3
Number of Ways 5
Safety Approval CCA; CSA; CUL; EAC; SEV; UL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Compliance
RoHS Status RoHS Compliant
