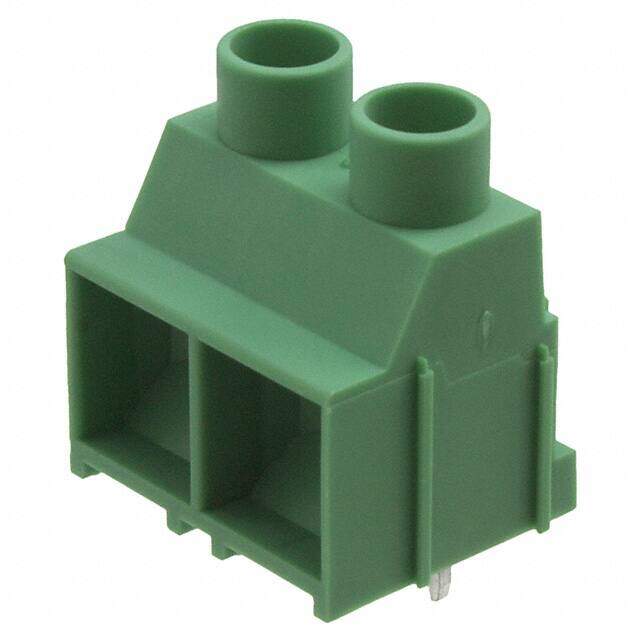

1902547 image
Favorite
1902547 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description TERM BLK 2P SIDE ENT 9.53MM PCB
PDF
/
Buying Options
Total Price: USD $1.54
Unit Price: USD $1.54
≥1 USD $1.54
≥10 USD $1.5004
≥100 USD $1.40184
≥500 USD $1.289728
≥1000 USD $1.191555
≥3000 USD $1.135499
Inventory: 6007
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 6.719999g

Technical

Packaging Bulk
Published 2010
Series COMBICON MKDS
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Color Green
Gender Male
Voltage - Rated 1kV
HTS Code 8536.90.40.00
Pitch 0.375 9.53mm
Orientation Straight
Depth 21.5mm
Reach Compliance Code unknown
Current Rating 32A
Approval Agency CB, cULus
Number of Contacts 2
Wire Gauge 10-30 AWG
Voltage 600V
Max Current Rating 32A
Number of Levels 1
Current 30A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 10 AWG
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 2
Safety Approval UL; CSA
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3

Dimensions

Height 21.5mm
Length 19.04mm
Width 16mm

Compliance

RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
