1897746
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

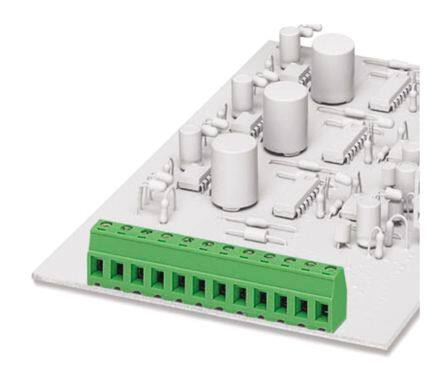

Fixed Terminal Blocks EMKDS 1.5/ 7-5.08
PDF
/
Inventory: 1165
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Press Fit
Mounting Type Press Fit
Housing Material Polyamide (PA), Nylon
Weight 20.999994g
Technical
Packaging Bulk
Published 2011
Series COMBICON EMKDS
Pbfree Code yes
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, UL 94V0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Current Rating 8A
Wire Gauge 14-30 AWG
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 7
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M2
Number of Positions Per Level 7
Dimensions
Length 9.3mm
Compliance
RoHS Status RoHS Compliant
