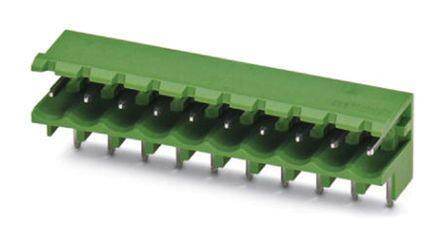

1892893
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 12P SIDE ENTRY 5MM PCB
PDF
/
Buying Options
Total Price: USD $35.82
Unit Price: USD $35.822477
≥1 USD $35.822477
≥200 USD $14.293542
≥500 USD $13.815647
≥1000 USD $13.580638
Inventory: 7256
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Contact Material - Plating Tin Plated
Technical
Packaging Bulk
Published 2014
Series COMBICON FRONT
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Screw
Color Green
Voltage - Rated 400V
Pitch 0.197 5.00mm
Current Rating 24A
Wire Gauge 12-30 AWG
Voltage 300V
Number of Levels 1
Current 20A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M2.5
Number of Positions Per Level 12
Compliance
RoHS Status RoHS Compliant
