RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board

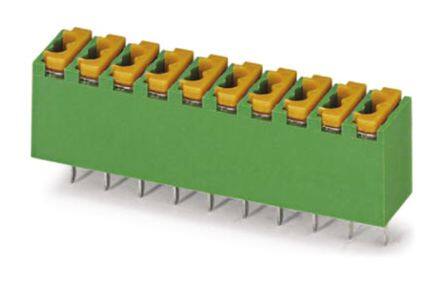

Description Fixed Terminal Blocks FK-MPT 0.5/13-3.5
PDF
/
Inventory: 1155
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Length 7mm

Technical

Fastening Method SPRING LOADED
Wire Cross Section 0.5 mm2
Wire Termination Screwless - Spring Cage, Tension Clamp
Mating Orientation Vertical with Board
Number of Ways 13
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 28 AWG
Number of Levels 1
Voltage 300V
Wire Gauge 20-28 AWG
Current Rating 4A
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Gender Female
Number of Rows 1
Color Green
Number of Positions 13
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON FK-MPT
Published 2005
Packaging Bulk

Physical

Weight 4.47999g
Housing Material Polybutylene Terephthalate (PBT)
Material PBT
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 13 Weeks
