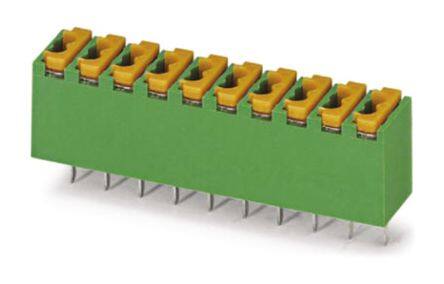

1891111
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Fixed Terminal Blocks 7P 3.5mm 180DEG
PDF
/
Inventory: 1218
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Material PBT
Housing Material Polyamide (PA), Nylon
Weight 2.65g
Technical
Packaging Bulk
Published 2005
Series COMBICON FK-MPT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Number of Positions 7
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Current Rating 4A
Wire Gauge 20-28 AWG
Voltage 300V
Number of Levels 1
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 20 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 7
Safety Approval UL
Mating Orientation Vertical with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Wire Cross Section 0.5 mm2
Fastening Method SPRING LOADED
Dimensions
Height 13mm
Length 7mm
Width 25mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
