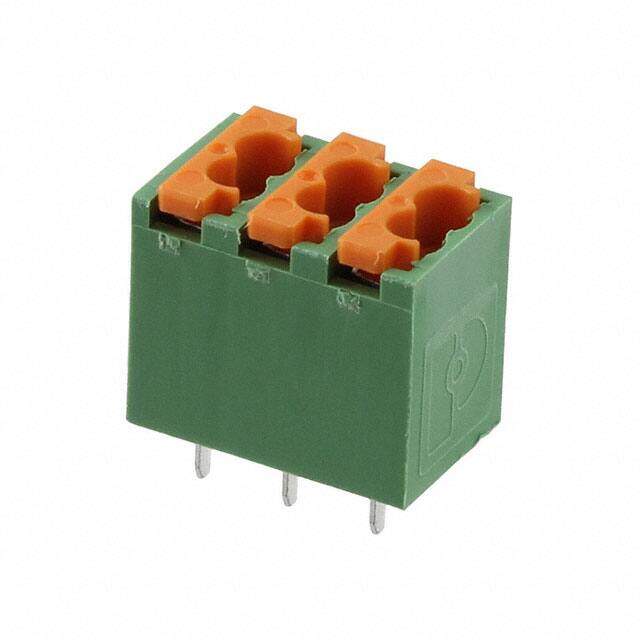

1891072
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Conn Spring Cage 3 POS 3.5mm Solder RA Thru-Hole 4A
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.924
≥1 USD $0.924
Inventory: 75
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 860.011134mg
Technical
Packaging Bulk
Published 2005
Series COMBICON FK-MPT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PBT, 94V-0
Pitch 0.138 3.50mm
Orientation Right Angle
Depth 7mm
Current Rating 4A
Wire Gauge 20-28 AWG
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 4A
Number of Levels 1
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 20 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 3
Safety Approval UL
Mating Orientation Vertical with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Number of Positions Per Level 3
Wire Cross Section 0.5 mm2
Fastening Method SPRING LOADED
Dimensions
Height 13mm
Length 11mm
Width 11mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
