1891069
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

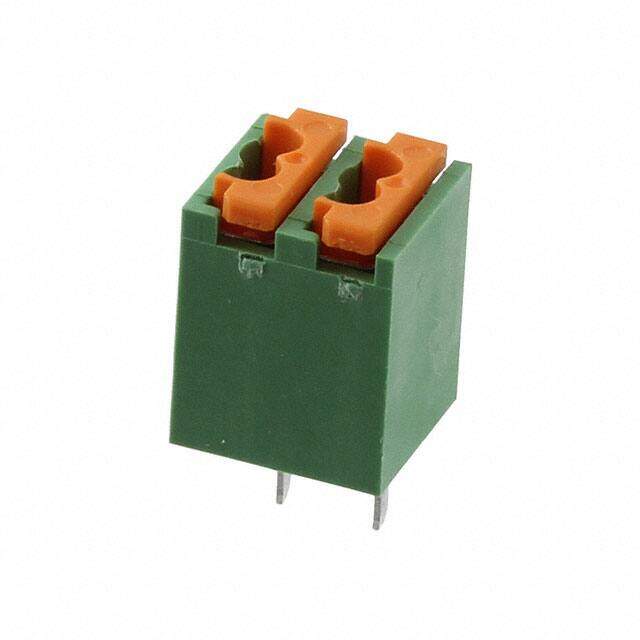

Fixed Terminal Blocks 2P 3.5mm 180DEG
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.6248
≥1 USD $0.6248
Inventory: 138
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 869.990166mg
Technical
Packaging Bulk
Published 2008
Series COMBICON FK-MPT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature POLYBUTYLENE TEREPHTHALATE
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Orientation Right Angle
Depth 7mm
Current Rating 4A
Approval Agency UL
Number of Contacts 2
Wire Gauge 20-28 AWG
Voltage 300V
Max Supply Voltage 160V
Max Current Rating 4A
Number of Levels 1
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Number of Decks 1
Number of Ways 2
Mating Orientation Vertical with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Stripping Length 6.5mm
Fastening Method SPRING LOADED
Dimensions
Length 7.5mm
Width 7.5mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
