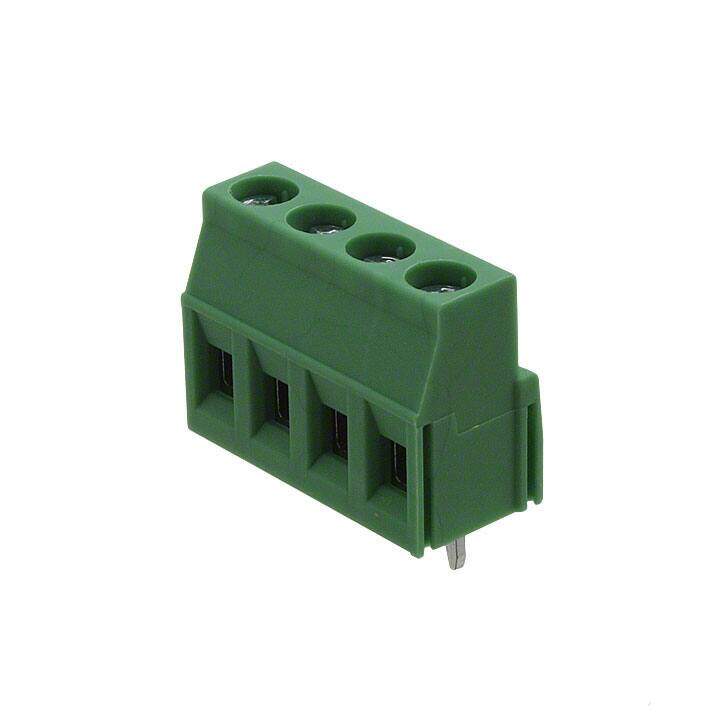

1890989
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Terminal Block Connector; PCB; Screw; 4; 5 mm; Front; 24-14 AWG; 16 A; 250 V; Solder
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.0736
≥1 USD $1.0736
Inventory: 201
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 5.759999g
Technical
Packaging Bulk
Published 2008
Series COMBICON MKDSN
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 400V
Pitch 0.197 5.00mm
Orientation Straight
Current Rating 16A
Approval Agency CB, UL, VDE, cULus
Number of Contacts 4
Wire Gauge 12-30 AWG
Voltage 300V
Number of Levels 1
Current 20A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 4
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Wire Cross Section 2.5 mm2
Dimensions
Height 18.5mm
Length 7mm
Width 20mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
