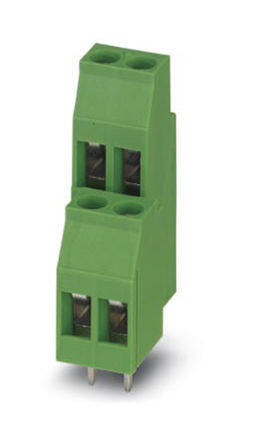

1870271 image
Favorite
1870271 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description Fixed Terminal Blocks MKKDSN 1.5/10-5.08
PDF
/
Buying Options
Total Price: USD $12.87
Unit Price: USD $12.8656
≥1 USD $12.8656
≥10 USD $12.51712
≥100 USD $11.69784
≥500 USD $10.762048
≥1000 USD $10.560563
Inventory: 59
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 50.8mm
Length 18.3mm
Height 22.6mm

Technical

Number of Positions Per Level 10
Screw Thread M3
Wire Termination Screw - Rising Cage Clamp
Mating Orientation Horizontal with Board
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 10A
Number of Levels 2
Voltage 300V
Wire Gauge 14-30 AWG
Current Rating 13.5A
Reach Compliance Code not_compliant
Pitch 0.200 5.08mm
Voltage - Rated 400V
Color Green
Connector Type Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Interlocking (Side)
Series COMBICON MKKDSN
Published 2011
Packaging Bulk

Physical

Weight 21.970002g
Housing Material Polyamide (PA), Nylon
Number of Pins 20
Mounting Type Through Hole
Mount Through Hole
Contact Material Tin

Supply Chain

Factory Lead Time 6 Weeks
