1870255
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

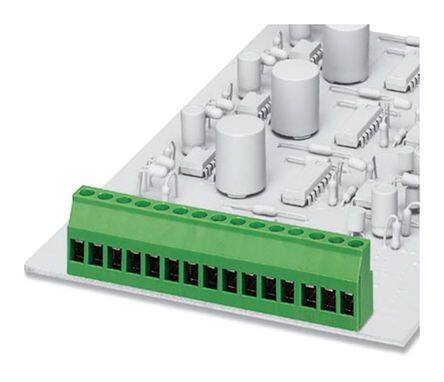

Fixed Terminal Blocks MK3DSMH 3/2-5.08-EX
PDF
/
Inventory: 1232
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 11.770013g
Technical
Packaging Bulk
Published 2011
Series COMBICON MK3DSMH
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Voltage - Rated 320V
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Current Rating 22A
Wire Gauge 12-24 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 2
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 2
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Number of Positions Per Level 2
Compliance
RoHS Status RoHS Compliant
