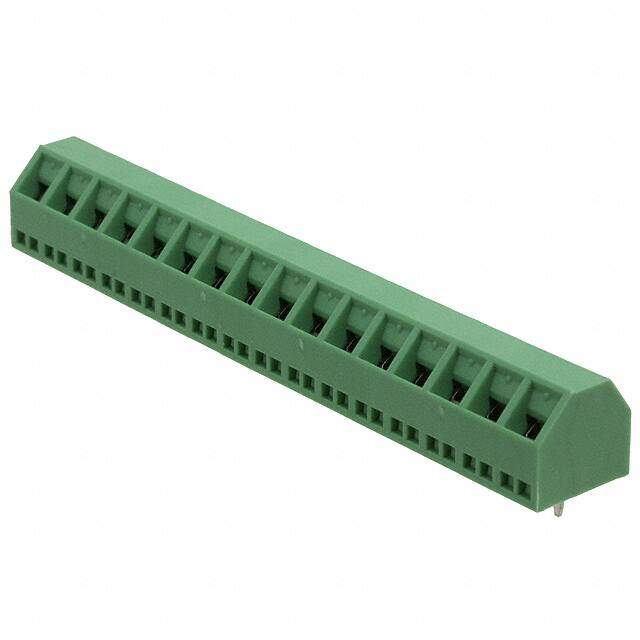

1869350 image
Favorite
1869350 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description Conn PC Terminal Block 16 POS 5.08mm Solder Thru-Hole 13.5A
PDF
/
Buying Options
Total Price: USD $7.63
Unit Price: USD $7.6296
≥1 USD $7.6296
≥10 USD $7.42368
≥100 USD $6.93792
≥500 USD $6.382904
≥1000 USD $6.263418
Inventory: 171
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 28.349523g

Technical

Packaging Bulk
Published 2010
Series COMBICON SMKDSN
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 400V
Screw Thread M3
Wire Termination Screw - Rising Cage Clamp
Mating Orientation 55° (125°) Angle with Board
Safety Approval UL
Number of Ways 16
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 30 AWG
Current 10A
Number of Levels 1
Max Current Rating 13.5A
Max Supply Voltage 250V
Voltage 300V
Wire Gauge 14-30 AWG
Number of Contacts 16
Current Rating 13.5A
Reach Compliance Code unknown
Depth 12mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Width 82.28mm
Length 82.28mm
Height 14.5mm
