1869347
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

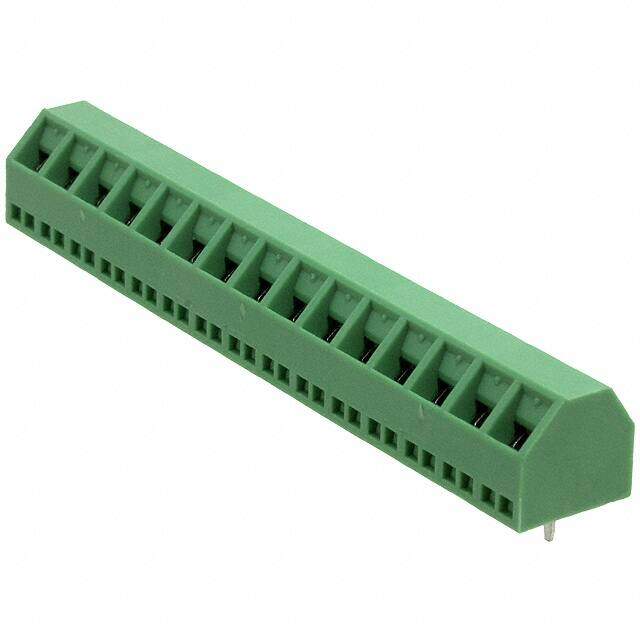

Fixed Terminal Blocks SMKDSN 1.5/15-5.08
PDF
/
Buying Options
Total Price: USD $7.15
Unit Price: USD $7.1456
≥1 USD $7.1456
≥10 USD $6.94936
≥100 USD $6.4944
≥500 USD $5.974848
≥1000 USD $5.862982
Inventory: 92
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 28.349523g
Technical
Packaging Bulk
Published 2011
Series COMBICON SMKDSN
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Current Rating 13.5A
Wire Gauge 14-30 AWG
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 15
Safety Approval UL
Mating Orientation 55° (125°) Angle with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Number of Positions Per Level 15
Compliance
RoHS Status RoHS Compliant
