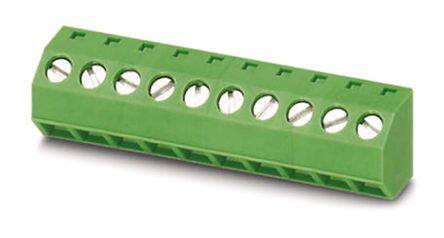

1869305
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Conn Terminal Blocks 11 POS 5.08mm Solder Thru-Hole 12A
PDF
/
Buying Options
Total Price: USD $14.52
Unit Price: USD $14.515422
≥1 USD $14.515422
≥200 USD $5.792515
≥500 USD $5.598206
≥1000 USD $5.502364
Inventory: 6375
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 28.349523g
Technical
Packaging Bulk
Published 2010
Series COMBICON SMKDSN
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Depth 12mm
Current Rating 13.5A
Number of Contacts 11
Wire Gauge 14-30 AWG
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 11
Safety Approval UL
Mating Orientation 55° (125°) Angle with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Dimensions
Length 56.88mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
