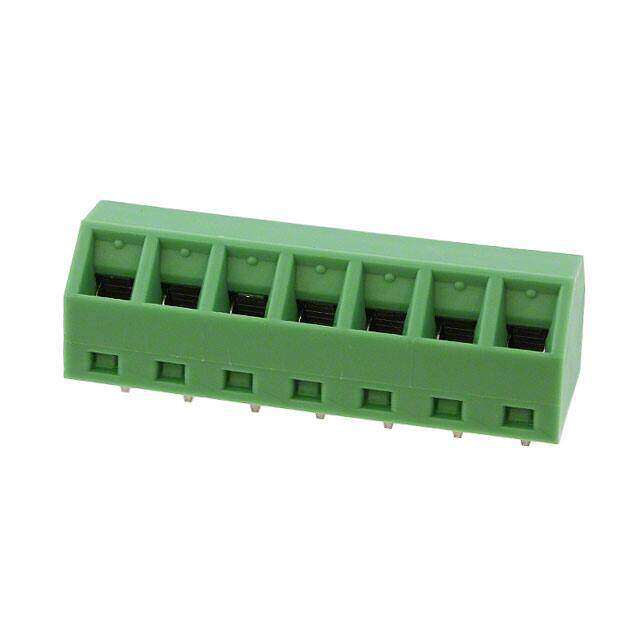

1869266
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Fixed Terminal Blocks 7P 5.08mm 145DEG
PDF
/
Buying Options
Total Price: USD $4.09
Unit Price: USD $4.086832
≥1 USD $4.086832
≥10 USD $3.855506
≥100 USD $3.637275
≥500 USD $3.43139
≥1000 USD $3.237164
Inventory: 7397
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 28.349523g
Technical
Packaging Bulk
Published 2005
Series COMBICON SMKDSN
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Current Rating 13.5A
Approval Agency CB, CSA, UL, cULus
Wire Gauge 14-30 AWG
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 26 AWG
Number of Poles 7
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 7
Safety Approval UL
Mating Orientation 55° (125°) Angle with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Stripping Length 6mm
Dimensions
Height 14.5mm
Length 12mm
Width 36.56mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
