1868623
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

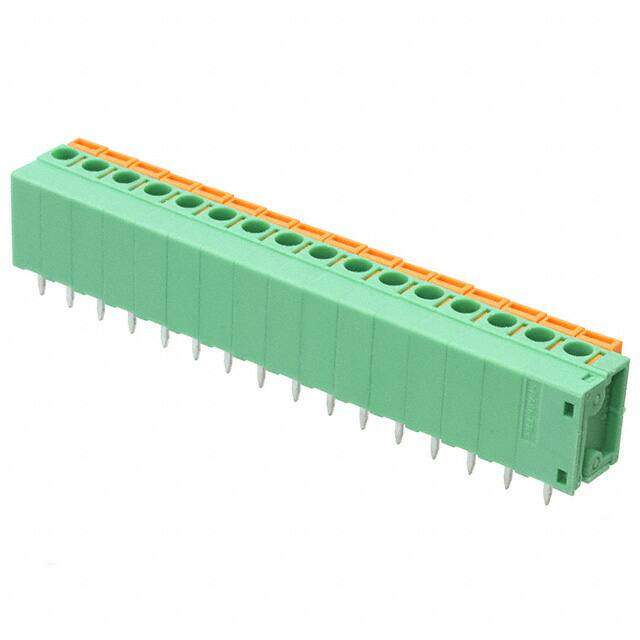

Fixed Terminal Blocks FFKDSA1/V1-5.08-16
PDF
/
Buying Options
Total Price: USD $14.41
Unit Price: USD $14.4144
≥1 USD $14.4144
≥10 USD $14.02544
≥100 USD $13.1076
≥500 USD $12.058992
≥1000 USD $11.833254
Inventory: 61
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Weight 16.199995g
Technical
Packaging Bulk
Published 2011
Series COMBICON FFKDSA
Feature Interlocking (Side), Lever Actuated
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Color Green
Voltage - Rated 300V
Pitch 0.200 5.08mm
Current Rating 10A
Wire Gauge 16-22 AWG
Number of Levels 1
Current 13.5A
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 16 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Positions Per Level 16
Mating Orientation Vertical with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
