1864367
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

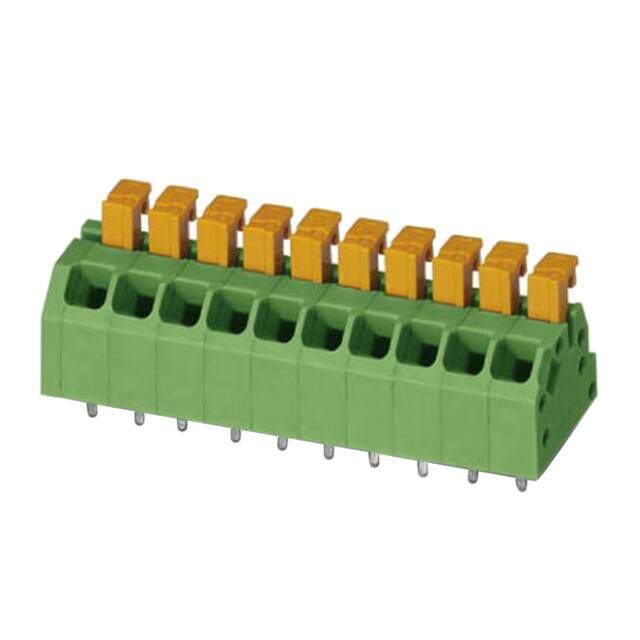

TERM BLOCK 10POS 45DEG 3.5MM PCB
PDF
/
Buying Options
Total Price: USD $3.67
Unit Price: USD $3.6696
≥1 USD $3.6696
≥10 USD $3.5112
≥100 USD $3.415104
≥500 USD $3.19176
≥1000 USD $2.936419
≥3000 USD $2.881454
Inventory: 53
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Wire Termination Screwless - Leg Spring, Push-In Spring
Mating Orientation 45° (135°) Angle with Board
Positions Per Level 10
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Current 8A
Number of Levels 1
Voltage 300V
Wire Gauge 16-24 AWG
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Color Green
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series COMBICON SPTAF LL
Published 2017
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Supply Chain
Factory Lead Time 7 Weeks
