1862217
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

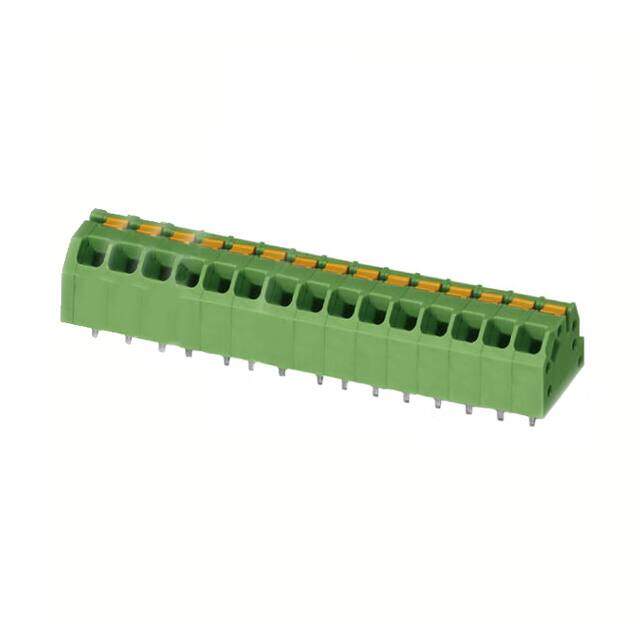

TERM BLOCK 15POS 45DEG 3.5MM PCB
PDF
/
Buying Options
Total Price: USD $4.1
Unit Price: USD $4.1008
≥1 USD $4.1008
Inventory: 83
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Contact Material - Plating Copper Alloy
Technical
Packaging Bulk
Published 2017
Series COMBICON SPTAF IL
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Color Green
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Wire Gauge 16-24 AWG
Voltage 300V
Number of Levels 1
Current 8A
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Positions Per Level 15
Mating Orientation 45° (135°) Angle with Board
Wire Termination Screwless - Leg Spring, Push-In Spring
Compliance
RoHS Status RoHS Compliant
