1862194
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

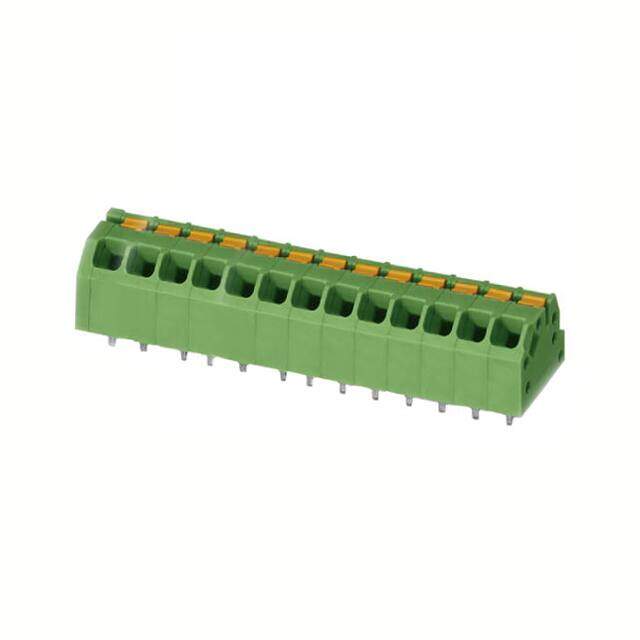

TERM BLOCK 13POS 45DEG 3.5MM PCB
PDF
/
Buying Options
Total Price: USD $4.6
Unit Price: USD $4.6024
≥1 USD $4.6024
≥10 USD $4.47304
≥100 USD $4.18
≥500 USD $3.8456
≥1000 USD $3.552982
≥3000 USD $3.465722
Inventory: 141
Minimum: 1
-
+
Technical Details
Technical
Series COMBICON SPTAF IL
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Color Green
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Wire Gauge 16-24 AWG
Voltage 300V
Number of Levels 1
Current 8A
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Positions Per Level 13
Mating Orientation 45° (135°) Angle with Board
Wire Termination Screwless - Leg Spring, Push-In Spring
Published 2016
Packaging Bulk
Compliance
RoHS Status RoHS Compliant
Physical
Contact Material - Plating Copper Alloy
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Supply Chain
Factory Lead Time 7 Weeks
Alternative Model
