1848668
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

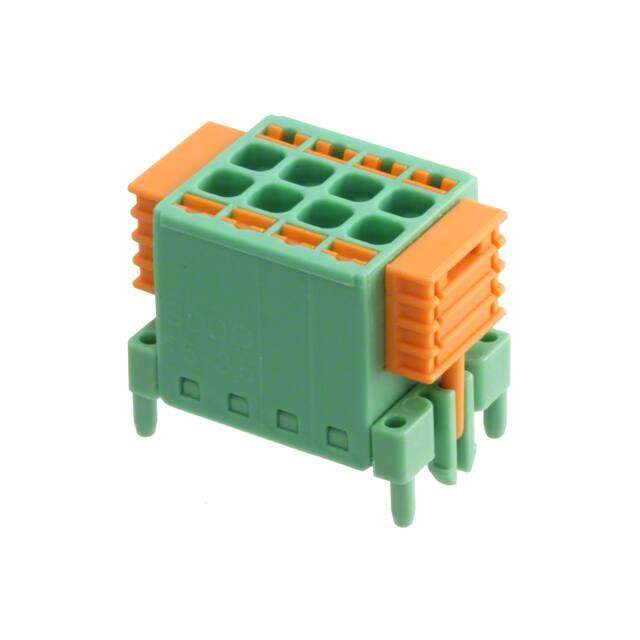

TERM BLOCK 4POS TOP ENTRY 3.5MM
PDF
/
Buying Options
Total Price: USD $4.88
Unit Price: USD $4.884
≥1 USD $4.884
Inventory: 335
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Through Hole, SKEDD
Housing Material Polyamide (PA), Nylon
Contact Material - Plating Tin Plated
Technical
Packaging Bulk
Series SDDC
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Color Green
Pitch 0.138 3.50mm
Wire Gauge 16-24 AWG
Voltage 300V
Number of Levels 2
Current 8A
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Positions Per Level 4
Mating Orientation Vertical with Board
Wire Termination Screwless - Leg Spring, Push-In Spring
Compliance
RoHS Status RoHS Compliant
