1824336
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

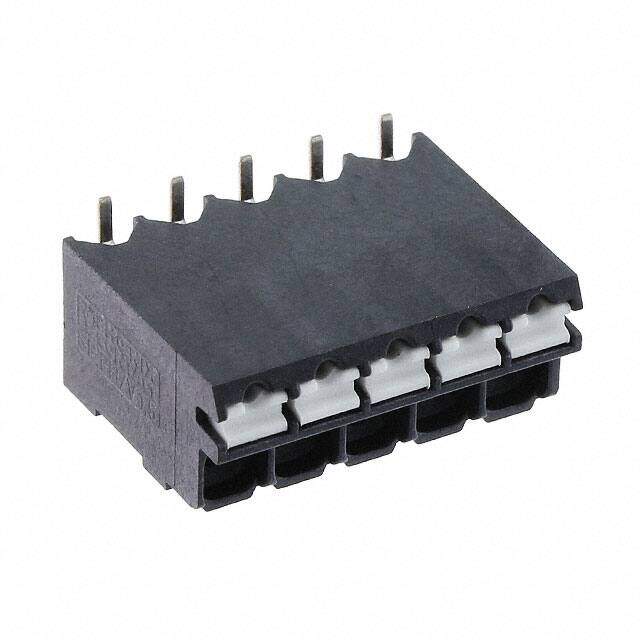

TERM BLOCK 5POS TOP 5MM SMD
PDF
/
Buying Options
Total Price: USD $3.1
Unit Price: USD $3.0976
≥1 USD $3.0976
Inventory: 251
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Number of Positions Per Level 5
Wire Termination Screwless - Leg Spring, Push-In Spring
Mating Orientation Vertical with Board
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 10A
Number of Levels 1
Voltage 300V
Wire Gauge 16-24 AWG
Pitch 0.197 5.00mm
Color Black
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON SPT-SMD
Published 2016
Packaging Tape & Reel (TR)
Physical
Contact Material - Plating Tin Plated
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 9 Weeks
