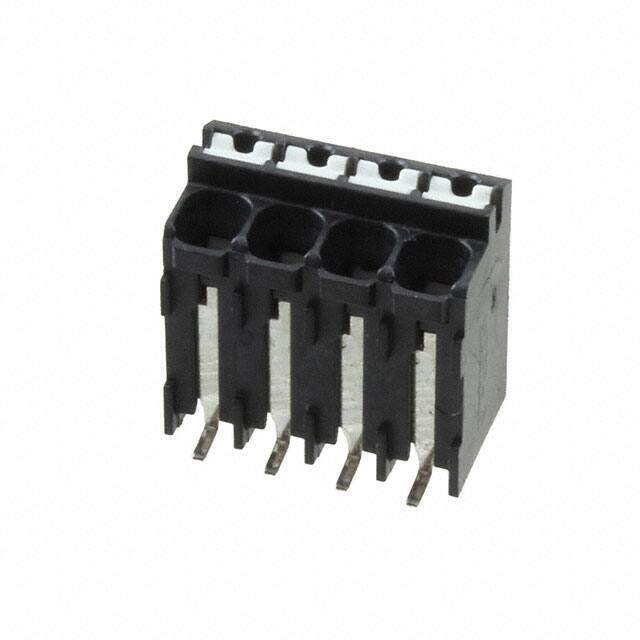

1824323
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLOCK 4POS TOP 5MM SMD
PDF
/
Buying Options
Total Price: USD $2.57
Unit Price: USD $2.5696
≥1 USD $2.5696
Inventory: 320
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Housing Material Liquid Crystal Polymer (LCP)
Contact Material - Plating Tin Plated
Technical
Packaging Tape & Reel (TR)
Published 2016
Series COMBICON SPT-SMD
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Color Black
Pitch 0.197 5.00mm
Wire Gauge 16-24 AWG
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Mating Orientation Vertical with Board
Wire Termination Screwless - Leg Spring, Push-In Spring
Number of Positions Per Level 4
Compliance
RoHS Status RoHS Compliant
