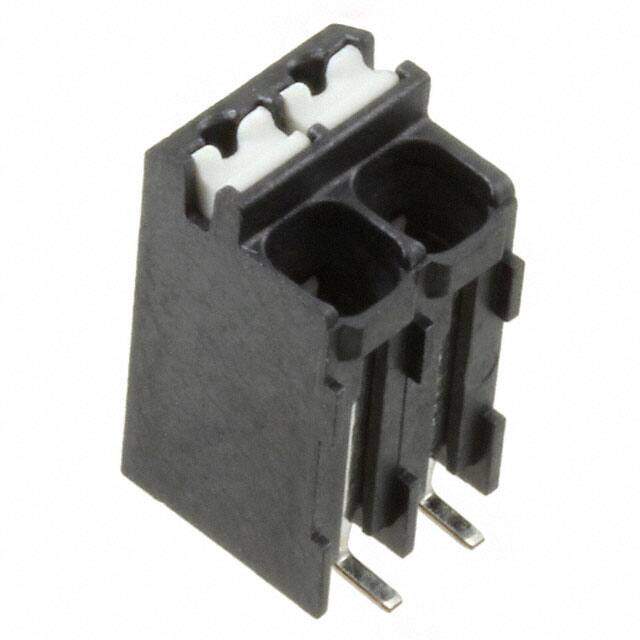

1824080 image
Favorite
1824080 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description TERM BLOCK 2POS TOP 3.5MM SMD
PDF
/
Buying Options
Total Price: USD $1.51
Unit Price: USD $1.5136
≥1 USD $1.5136
Inventory: 6775
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

Fastening Method SPRING LOADED
Number of Positions Per Level 2
Wire Termination Screwless - Leg Spring, Push-In Spring
Mating Orientation Vertical with Board
Safety Approval CUL; EAC; UL
Number of Ways 2
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 10A
Number of Levels 1
Voltage 300V
Wire Gauge 16-24 AWG
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0, LCP
Number of Rows 1
Color Black
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON SPT-SMD
Published 2016
Packaging Tape & Reel (TR)

Physical

Contact Material - Plating Tin Plated
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
