RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board

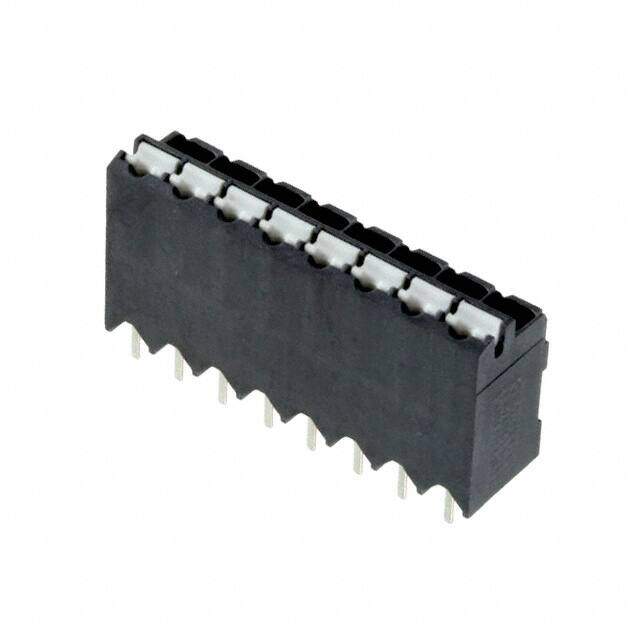

Description COMBICON SPT-THR RoHS Compliant 2015 Horizontal with Board Wire Board Terminal Block 24AWG 10A 300V 0.197 5.00mm
PDF
/
Inventory: 1146
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

Number of Positions Per Level 8
Wire Termination Screwless - Leg Spring, Push-In Spring
Mating Orientation Horizontal with Board
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 10A
Number of Levels 1
Voltage 300V
Wire Gauge 16-24 AWG
Pitch 0.197 5.00mm
Color Black
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON SPT-THR
Published 2015
Packaging Tape & Reel (TR)

Physical

Contact Material - Plating Tin Plated
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 7 Weeks
