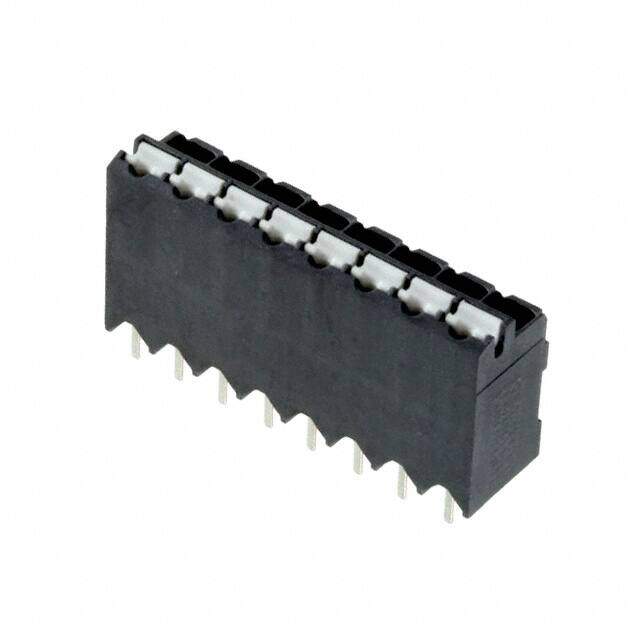

1823256
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLOCK 8POS TOP 3.5MM PCB
PDF
/
Buying Options
Total Price: USD $3.82
Unit Price: USD $3.8192
≥1 USD $3.8192
Inventory: 257
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Contact Material - Plating Tin Plated
Technical
Packaging Tape & Reel (TR)
Published 2015
Series COMBICON SPT-THR
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Color Black
Number of Rows 1
Additional Feature STANDARD: UL 94V-0, LCP
Pitch 0.138 3.50mm
Wire Gauge 16-24 AWG
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 8
Safety Approval CUL; EAC; UL
Mating Orientation Vertical with Board
Wire Termination Screwless - Leg Spring, Push-In Spring
Number of Positions Per Level 8
Fastening Method SPRING LOADED
Compliance
RoHS Status RoHS Compliant
