1822545
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

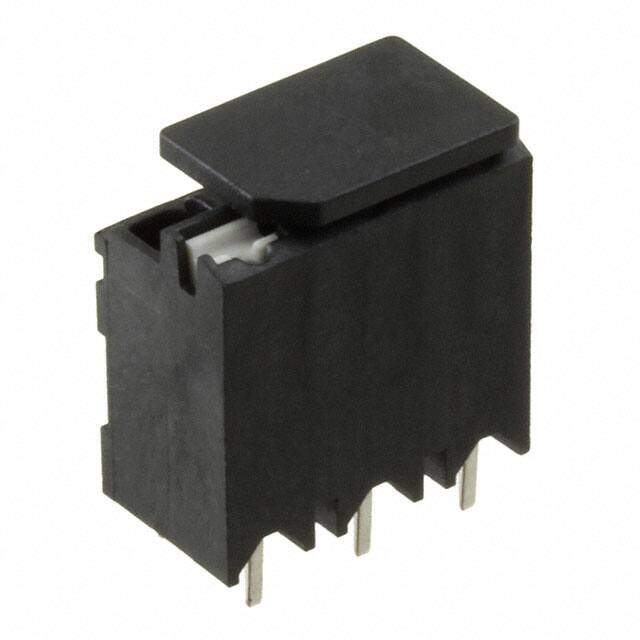

COMBICON SPT-THR RoHS Compliant 2015 Vertical with Board Wire Board Terminal Block 24AWG 10A 300V 0.197 5.00mm
PDF
/
Inventory: 1096
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Contact Material - Plating Tin Plated
Technical
Packaging Tape & Reel (TR)
Published 2015
Series COMBICON SPT-THR
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Color Black
Pitch 0.197 5.00mm
Wire Gauge 16-24 AWG
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Mating Orientation Vertical with Board
Wire Termination Screwless - Leg Spring, Push-In Spring
Number of Positions Per Level 3
Compliance
RoHS Status RoHS Compliant
