1792177
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

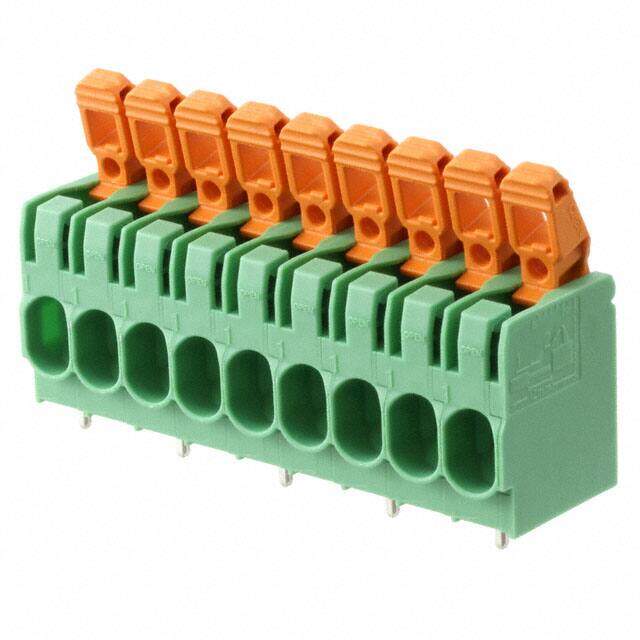

COMBICON PLH RoHS Compliant 2013 Horizontal with Board Wire Board Terminal Block 24AWG 0.295 7.50mm
PDF
/
Buying Options
Total Price: USD $42.2
Unit Price: USD $42.195293
≥1 USD $42.195293
≥200 USD $16.83663
≥500 USD $16.274708
≥1000 USD $15.996374
Inventory: 6520
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2013
Series COMBICON PLH
Feature Lever Actuated
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Color Green
Pitch 0.295 7.50mm
Wire Gauge 10-24 AWG
Number of Levels 1
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 10 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Mating Orientation Horizontal with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Number of Positions Per Level 9
Compliance
RoHS Status RoHS Compliant
