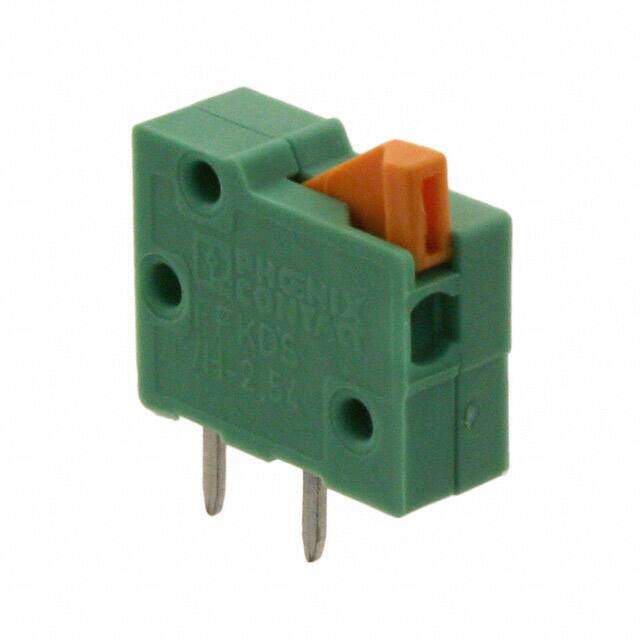

1791868
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Fixed Terminal Blocks END TERMINAL BLOCK
PDF
/
Buying Options
Total Price: USD $1.45
Unit Price: USD $1.452
≥1 USD $1.452
≥10 USD $1.39392
≥100 USD $1.333024
≥500 USD $1.296592
≥1000 USD $1.21176
≥3000 USD $1.114819
Inventory: 240
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Width 5.08mm
Length 5.08mm
Height 13.6mm
Technical
Wire Cross Section 0.5 mm2
Wire Termination Screwless - Spring Cage, Tension Clamp
Mating Orientation Horizontal with Board
Safety Approval UL; CSA
Number of Ways 1
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Wire/Cable Gauge 26 AWG
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 26 AWG
Max Current Rating 6A
Voltage 150V
Wire Gauge 20-26 AWG
Number of Contacts 1
Current Rating 6A
Orientation Right Angle
Pitch 2.54mm
HTS Code 8536.69.40.40
Additional Feature POLYAMIDE, 94V-2
Voltage - Rated 160V
Color Green
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side), Lever Actuated
Series COMBICON FFKDSA
Published 2000
Packaging Bulk
Physical
Weight 872.995215mg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
