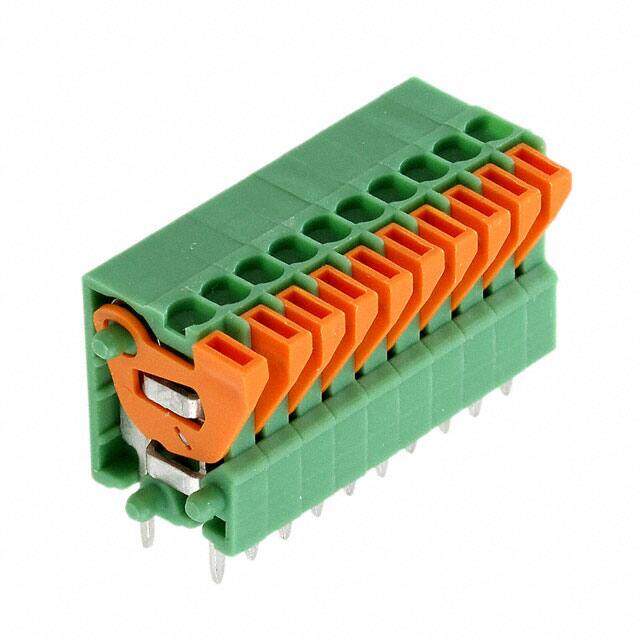

1791813 image
Favorite
1791813 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description TERM BLK 1POS TOP ENT PCB 1=10PC
PDF
/
Buying Options
Total Price: USD $0.25
Unit Price: USD $0.249857
≥1 USD $0.249857
≥10 USD $0.244624
≥100 USD $0.242008
Inventory: 80
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 16mm
Length 11mm
Height 12.6mm

Technical

Fastening Method SPRING LOADED
Wire Cross Section 0.5 mm2
Wire Termination Screwless - Spring Cage, Tension Clamp
Mating Orientation Vertical with Board
Safety Approval UL; CSA
Number of Ways 1
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Wire/Cable Gauge 26 AWG
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 26 AWG
Max Current Rating 6A
Max Supply Voltage 63V
Voltage 150V
Wire Gauge 20-26 AWG
Number of Contacts 1
Lead Pitch 2.54mm
Approval Agency CSA, UL
Voltage - Rated AC 63V
Current Rating 6A
Depth 12.6mm
Orientation Right Angle
Pitch 2.54mm
Voltage - Rated DC 63V
HTS Code 8536.69.40.40
Additional Feature POLYAMIDE, 94V-2
Number of Rows 1
Color Green
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Interlocking (Side), Lever Actuated
Series COMBICON FFKDS
Published 2003
Packaging Bulk

Physical

Weight 558.003664mg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 7 Weeks
