1790852
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

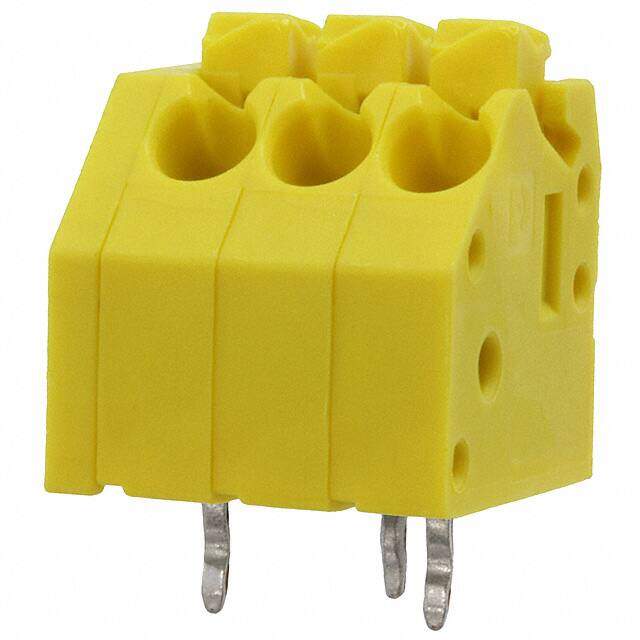

Connector; PCB header; 8A; 250V; 3-position; PTSA 1 5/ 3-3 5-Z YE
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.3432
≥1 USD $0.3432
Inventory: 350
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 12mm
Height 13.1mm
Technical
Number of Positions Per Level 3
Mating Orientation 45° (135°) Angle with Board
Positions Per Level 3
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 24 AWG
Number of Levels 1
Voltage 300V
Wire Gauge 16-24 AWG
Current Rating 2A
Pitch 0.138 3.50mm
Voltage - Rated 250V
Color Yellow
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON PTSA
Published 2017
Packaging Bulk
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 13 Weeks
