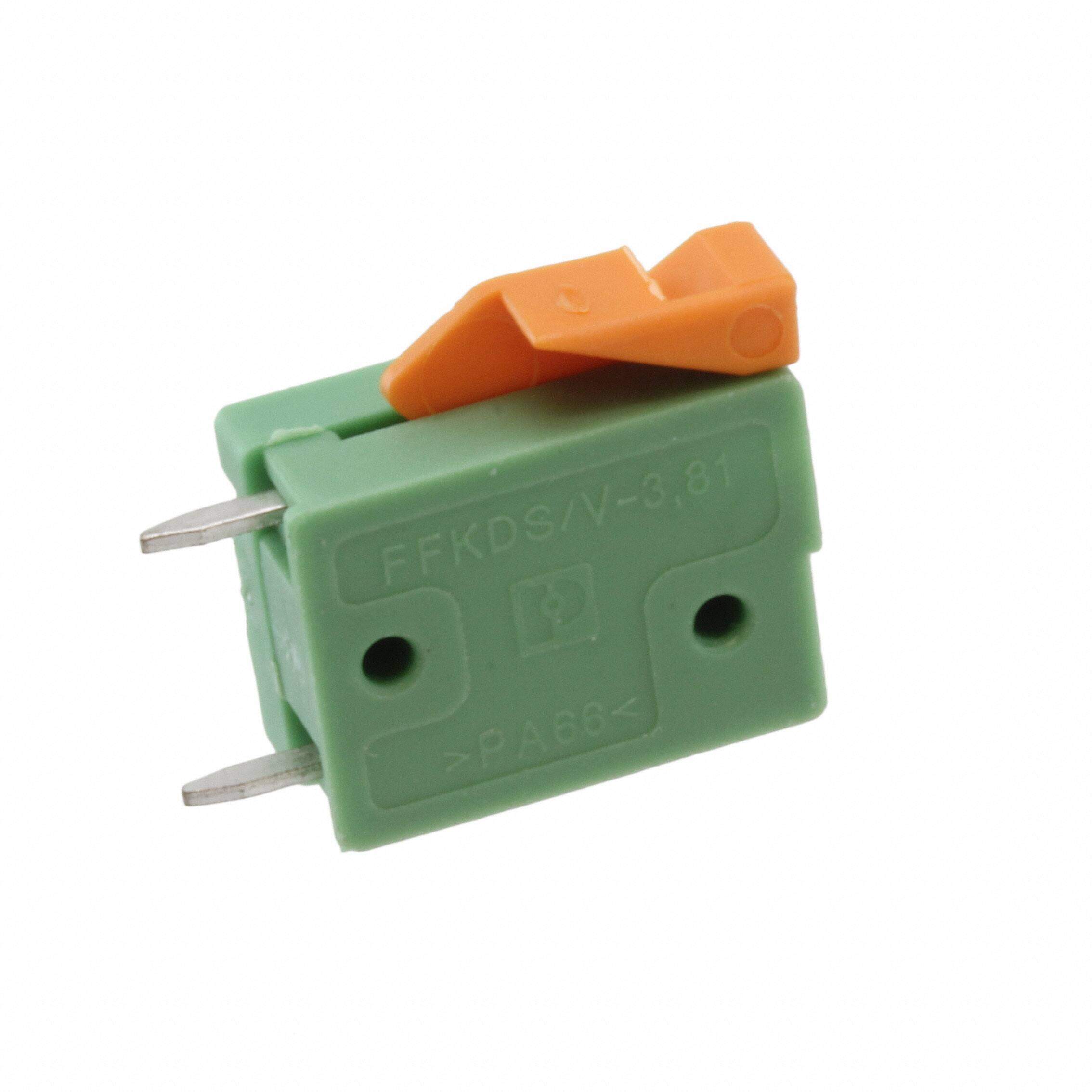

1789621
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Conn PC Terminal Block 1 POS Solder Thru-Hole 12A
PDF
/
Buying Options
Total Price: USD $1.11
Unit Price: USD $1.1088
≥1 USD $1.1088
Inventory: 465
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.263g
Technical
Packaging Bulk
Published 2011
Series COMBICON FFKDSA
Feature Interlocking (Side), Lever Actuated
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Color Green
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 3.81mm
Depth 6.35mm
Current Rating 12A
Number of Contacts 1
Wire Gauge 16-26 AWG
Voltage 300V
Max Current Rating 12A
Current 6A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 16 AWG
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Mating Orientation Vertical with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Dimensions
Width 6.35mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
