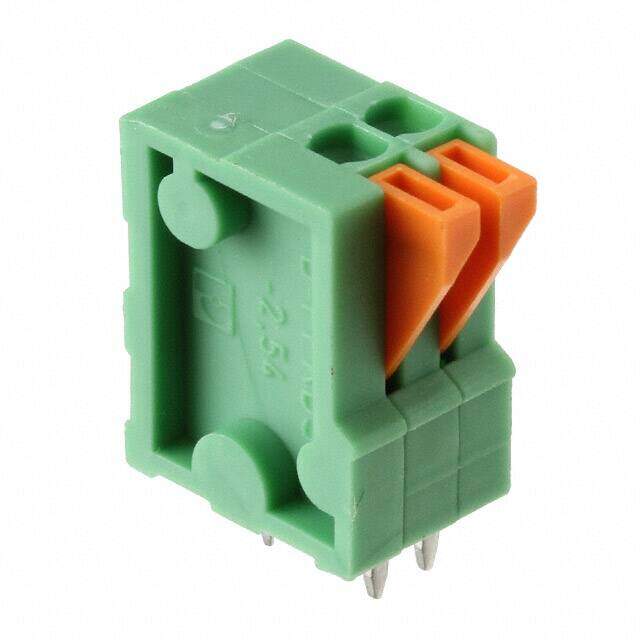

1789618
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Conn PC Terminal Block 2 POS 2.54mm Solder Thru-Hole 6A
PDF
/
Buying Options
Total Price: USD $2.09
Unit Price: USD $2.0856
≥1 USD $2.0856
≥10 USD $2.02576
≥100 USD $1.89288
≥500 USD $1.741432
≥1000 USD $1.708854
Inventory: 242
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Number of Positions Per Level 2
Wire Termination Screwless - Spring Cage, Tension Clamp
Mating Orientation Vertical with Board
Terminal and Terminal Block Type STRIP TERMINAL BLOCK
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 26 AWG
Number of Levels 1
Max Current Rating 6A
Max Supply Voltage 160V
Voltage 150V
Wire Gauge 20-26 AWG
Current Rating 6A
Pitch 0.100 2.54mm
HTS Code 8536.69.40.40
Voltage - Rated 160V
Color Green
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Interlocking (Side), Lever Actuated
Series COMBICON FFKDSA
Published 2011
Packaging Bulk
Physical
Weight 1.369991g
Housing Material Polyamide
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
