1789401
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

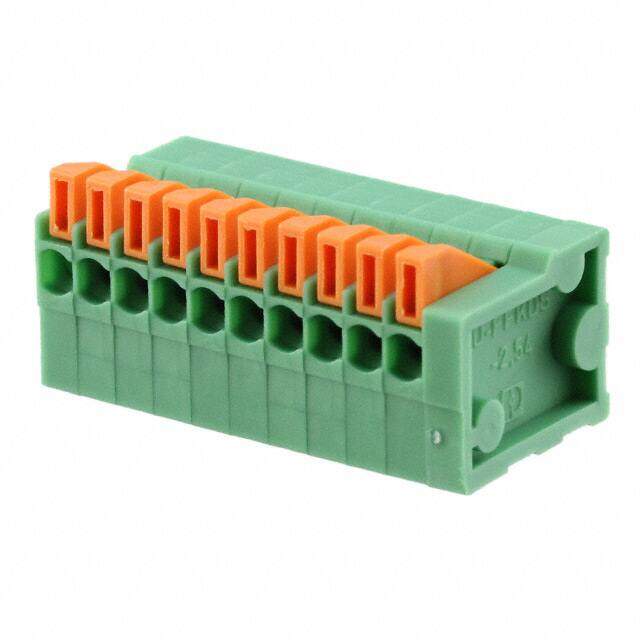

Fixed Terminal Blocks FFKDSA1/V-2.54-10
PDF
/
Buying Options
Total Price: USD $8.53
Unit Price: USD $8.5272
≥1 USD $8.5272
≥10 USD $7.96752
≥100 USD $7.330224
≥500 USD $7.192944
Inventory: 48
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Weight 3.799998g
Technical
Packaging Bulk
Published 2010
Series COMBICON FFKDSA
Feature Interlocking (Side), Lever Actuated
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Color Green
Voltage - Rated 160V
Pitch 0.100 2.54mm
Current Rating 6A
Wire Gauge 20-26 AWG
Voltage 150V
Number of Levels 1
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 20 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Positions Per Level 10
Mating Orientation Vertical with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Number of Positions Per Level 10
Dimensions
Length 12.6mm
Compliance
RoHS Status RoHS Compliant
