1789320
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

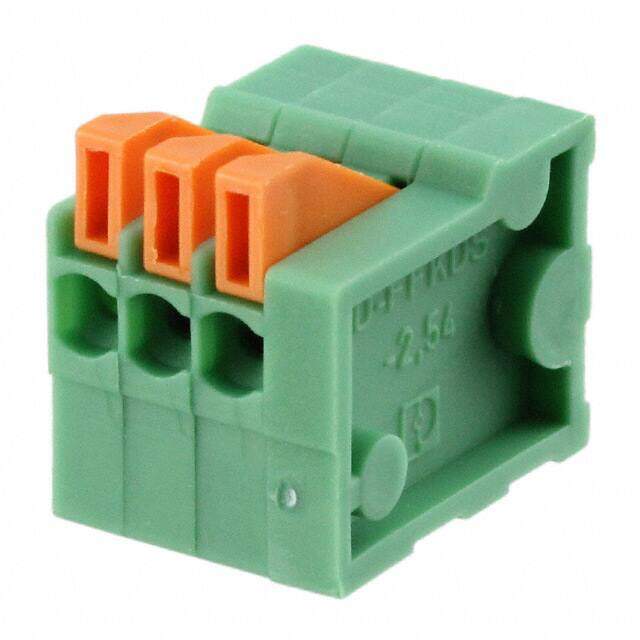

Fixed Terminal Blocks FFKDSA1/V-2.54-3
PDF
/
Buying Options
Total Price: USD $3.41
Unit Price: USD $3.4144
≥1 USD $3.4144
≥10 USD $3.32376
≥100 USD $3.1064
≥500 USD $2.857888
≥1000 USD $2.640422
≥3000 USD $2.523963
Inventory: 208
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 1.569997g
Technical
Packaging Bulk
Published 2011
Series COMBICON FFKDSA
Feature Interlocking (Side), Lever Actuated
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Color Green
Voltage - Rated 160V
Pitch 0.100 2.54mm
Reach Compliance Code unknown
Current Rating 6A
Wire Gauge 20-26 AWG
Voltage 150V
Number of Levels 1
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 20 AWG
Terminal and Terminal Block Type STRIP TERMINAL BLOCK
Positions Per Level 3
Mating Orientation Vertical with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Number of Positions Per Level 3
Dimensions
Height 12.6mm
Length 10.12mm
Width 17mm
Compliance
RoHS Status RoHS Compliant
