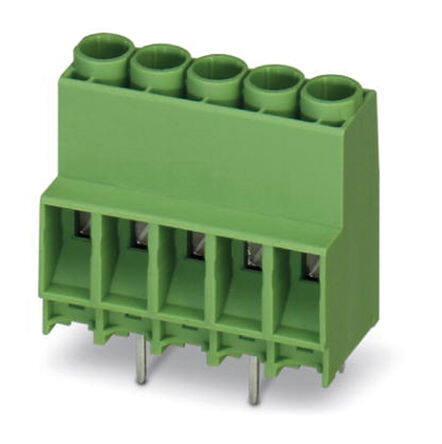

1777642
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
TERM BLK 12P SIDE ENT 6.35MM PCB
PDF
/
Buying Options
Total Price: USD $31.9
Unit Price: USD $31.898218
≥1 USD $31.898218
≥200 USD $12.728566
≥500 USD $12.303186
≥1000 USD $12.093122
Inventory: 2586
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2014
Series COMBICON MKDS
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Color Green
Voltage - Rated 1kV
Pitch 0.250 6.35mm
Depth 32mm
Reach Compliance Code not_compliant
Current Rating 41A
Wire Gauge 10-30 AWG
Voltage 600V
Number of Levels 1
Current 30A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 10 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Number of Positions Per Level 12
Dimensions
Length 15.85mm
Compliance
RoHS Status RoHS Compliant
