1774072
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

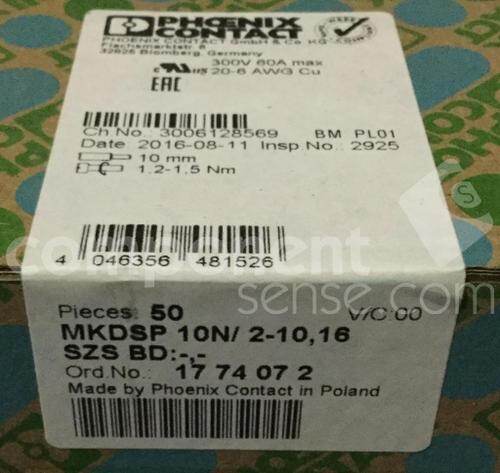

Screw terminal 10.00 mm2 Number of pins 2 MKDSP 10N/ 2-10,16 SZS BD:-,-
PDF
/
Inventory: 1096
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2014
Series COMBICON MKDSP
Feature Interlocking (Side), Positions Stamped
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Color Green
Pitch 0.400 10.16mm
Current Rating 76A
Wire Gauge 6-20 AWG
Voltage 600V
Number of Levels 1
Current 60A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 6 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Positions Per Level 2
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M4
Dimensions
Height 20.32mm
Length 18.4mm
Width 34.3mm
Compliance
RoHS Status RoHS Compliant
